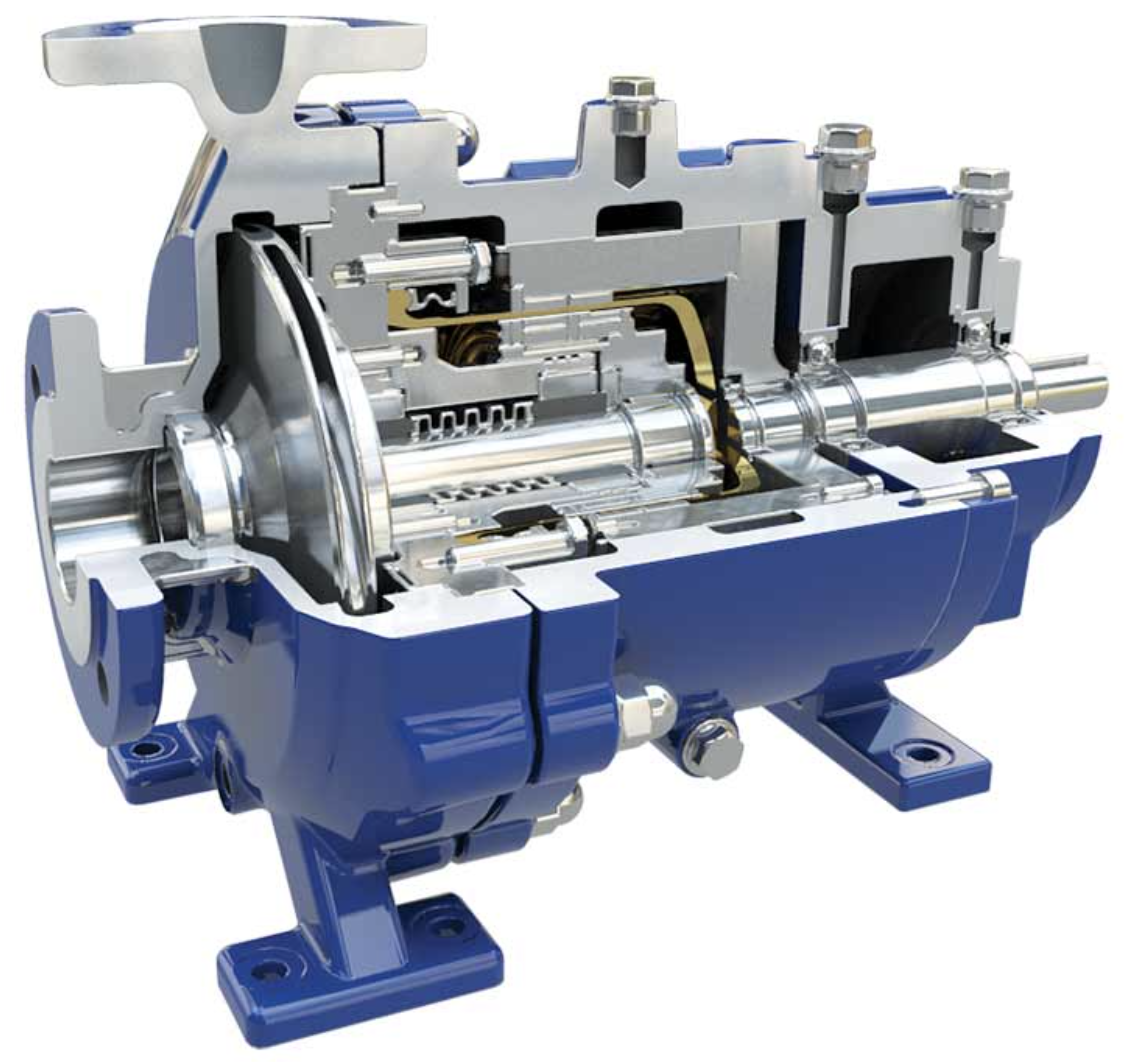

RUHRPUMPEN-CRP-M - Centrifugal pump
This centrifugal pump with a magnetic coupling is designed to meet DIN EN 22858 and DIN EN ISO 15783 standards. Pumps of CRP-M product line, accomplished by magnetic drives with permanent magnets as per DIN EN 22858 and DIN EN ISO 15783 standards, have innovatory design solutions of the journal bearings, internal flushing system with optimum allocation of flow and pressure, highly-effective magnetic drive and axial load discharge system.
As a 100% leakage free pump the CRP-M avoids high maintenance costs and usage of mechanical seals. It is also the best option for taking care of the environment and meets the requirements of the TA-Luft specification (German Technical Instruction on Air Quality Control)
- Capacity up to 500 m3/h
- Head up to 215 m
- Design pressure 16 bar at 120 °C
- Temperature from -120°C to 450°C
